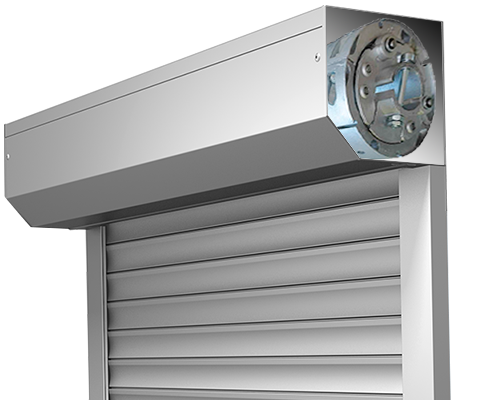

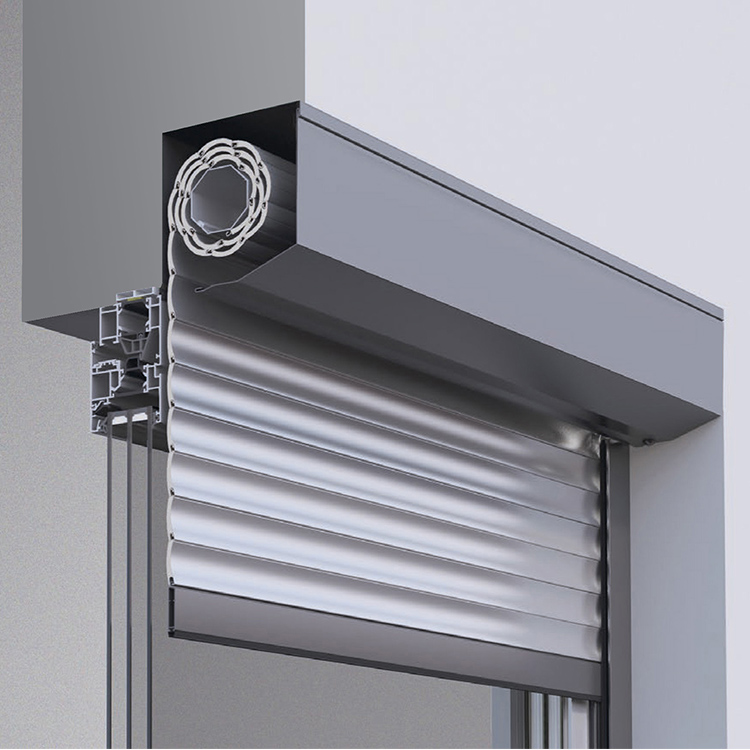

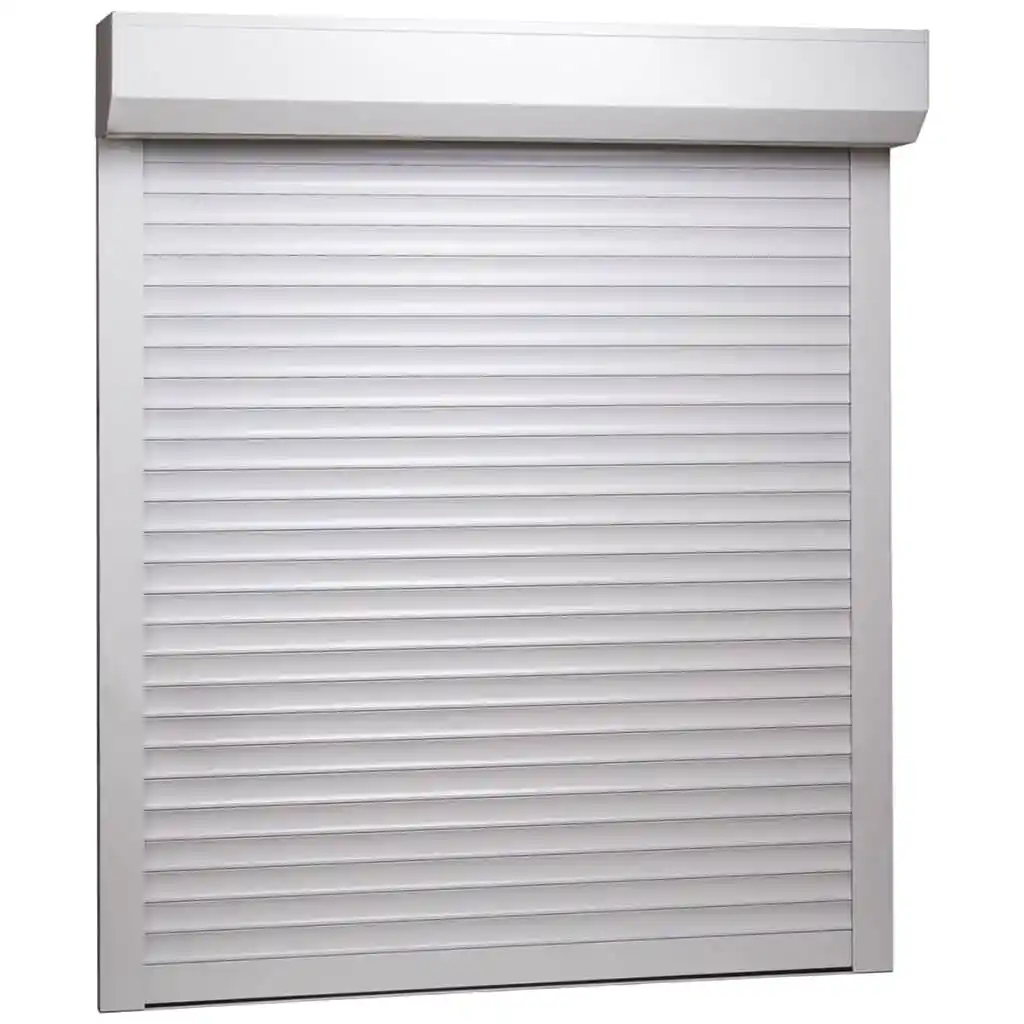

Steel Automatic Roller Shutter
High-quality security solution
Introduction
PGE Steel Roller Shutter Doors are engineered for strength, durability, and operational ease in industrial, commercial, and residential settings. Available in both motorized and manual options, these shutters provide excellent security, heat insulation, and impact resistance, with the flexibility to match your building's aesthetics and operational needs.
Motorized Roller Shutter Specifications
Component | Details |
|---|---|
Slat Size | 82mm galvanized steel |
Slat Thickness | 0.6mm, 0.8mm, 1.0mm, 1.2mm |
Color Options | White, beige, natural, or custom |
Operation | Motorized with side motor, switch button, and remote control |
Guide Rail Size | 100mm × 50mm or 70mm × 43mm (galvanized) |
Bottom Rail | Galvanized steel |
Drive Components | Endless chain, galvanized shaft, bearing, endplate, end clip |
Optional | Shutter box |
Manual Roller Shutter Specifications
Component | Details |
|---|---|
Slat Size | 82mm galvanized steel |
Slat Thickness | 0.6mm, 0.8mm, 1.0mm, 1.2mm |
Color Options | White, beige, natural, or custom |
Operation | Manual with lifting handles and lock |
Guide Rail Size | 100mm × 50mm or 70mm × 43mm (galvanized) |
Bottom Rail | Galvanized steel |
Drive Components | Hanging slat, galvanized shaft, helical spring, endplate, end clip |
Optional | Shutter box |
Application Range
Commercial shops
Warehouses
Industrial units
Garages
Max Dimensions: Width – 6500mm, Height – 6000mm
Optional Activation & Safety Sensors
Sensor | Description |
|---|---|
FALCON (Opening) | Unidirectional microwave motion sensor for automatic industrial doors |
EAGLE (Opening) | Microwave sensor (uni/bi-directional); suitable for all automatic doors |
Touchless Switch | Non-contact hand sensor (range: 100–200mm) |
Infrared Photocell | Obstacle detection (range: 1–15 meters); compatible with remote control systems |
