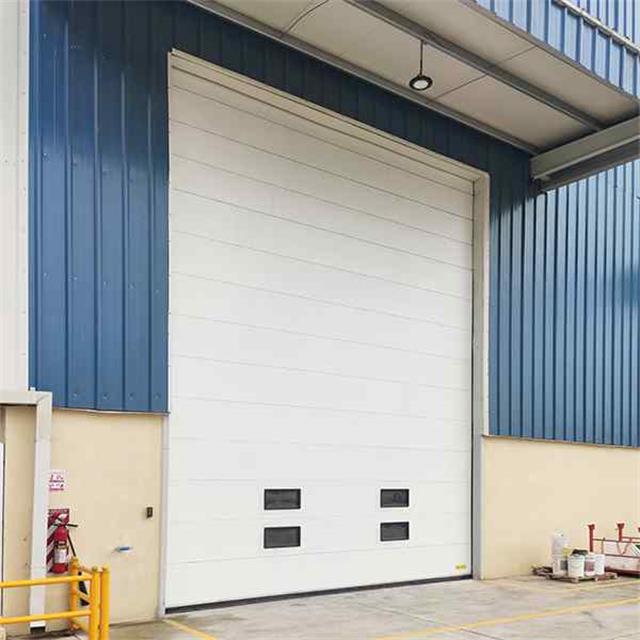

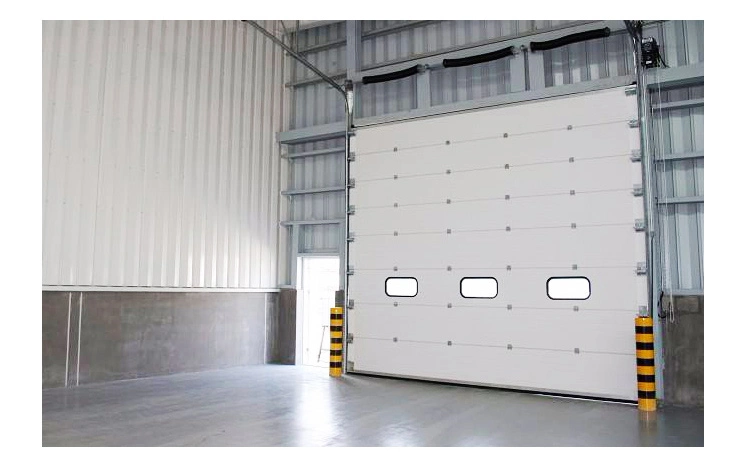

Industrial Sectional Door
Heavy-duty Sectional Over Head Door
Introduction
PGE Overhead Sectional Doors are engineered for industrial and commercial applications requiring durability, insulation, and smooth operation. Designed for high-traffic environments like warehouses and loading docks, these doors combine performance, security, and efficiency.
Specifications
Panel Thickness | 40mm, 50mm, 60mm (Galvanized steel skins: 0.326–0.45mm) |
|---|---|
Insulation | Heat transfer rate: k=1.2 W/m²K; density: 42kg/m³ |
Max Width | Up to 11,800mm |
Section Height | 440–550mm |
Temperature Range | -30°C to +50°C |
Cycle Life | Long working life; high-frequency use |
Weather Seals | Top, bottom, and side weatherstripping included |
Wind & Air Rating | Water tightness: Class 2; Air permeability: Class 4 |
Standards | EN13241-1, EN ISO12100, EN60204-1, EN61000-6, etc. |
Surface Options | Stucco, wood grain; panel styles: stripe, block, flat, smooth, wavy |
Color Options | Full RAL range + wood textures like Golden Oak, Walnut |
Opening Options | Remote, manual, chain hoist, or automatic |
